Boost converter - Continuous conduction mode (CCM)


Introduction

The objective of this experiment is to study the characteristics of a boost converter. The circuit will be operated under continuous-conduction mode (CCM) and open-loop conditions (no feedback).

Theoretical background

A boost converter is shown below, with the transistor and the diode forming the two-position switch of the power pole.

Boost converter

Turning on the transistor increases the inductor current—and thus the energy stored in the inductor—and when the transistor is turned off, the inductor current flows into the output capacitor through the diode, thereby transferring the incremental energy to the capacitor. For a given transistor switching function waveform q(t), shown below, with a switch duty ratio d in steady state, the waveform of the voltage vA at the current port follows q(t) as shown.

Boost converter steady-state operation waveforms showing the gating signal, power-pole voltage, inductor voltage and current, input current, and capacitor current

When the switch is ON, i.e., q(t) = 1, the voltage across the inductor is Vin. When the switch is OFF, i.e., q(t) = 0, the voltage across the inductor is Vin - Vo. Since the average voltage across the inductor under steady-state conditions is zero, from the vL plot in the above image

d × Ts × Vin + (1 - d) × Ts × -(Vo - Vin) = 0

⇒ Vo = Vin1 - d(1)

The inductor current iL comprises the average inductor current component IL, which equals the input current Iin, and the ripple current iL,ripple, which ideally flows into the capacitor.

iL(t) = IL (= Iin) + iL,ripple(t)(2)

The diode current idiode is the same as the inductor current when the switch is OFF and 0 when the switch is ON. This current is the sum of the output current Io,

Io = VoR(3)

and the capacitor current ic.

For an ideal boost converter, the input power equals the output power

VinIin = VoIo(4)

Using Eqns. 1 through 4

IL = Iin = VoVin Io = 11 - d VoR(5)

The inductor ripple current component is dictated by the inductor voltage since iL(t) = 1L∫vL(t) ⋅ dt. Thus, over a switching cycle, the peak-to-peak ripple current is given by

ΔiL = VinL × d × Ts = Vo - VinL × (1 - d) × Ts(6)

Preparing the Workbench model
  1. Copy the folder where pre-built example project for this experiment is present, usually in C:\Program Files (x86)\Sciamble\WorkBench v1\Examples\CUSPLab\BasicPowerElectronics\Experiment5 and paste it in a location where the user has permission to edit and save files, like the Desktop folder.

  2. Launch Workbench application.

  3. Pin (Dock hide icon) the Explorer dock on the right and the Toolbox dock on the left.

  4. Click the second icon within the Explorer dock, Open simulation/real-time control project button to open the project.

  5. Navigate to the folder where the pre-built example project was pasted in Step 1. Double click the BoostConverter.project node within that folder to open the project.

  6. Click the Project expand button icon to explore the files within the project. Double click the Workbench model logo Boost node in the Explorer dock to display the model file.

  7. Ensure that the switching frequency is set to 100 kHz. To do this, double click on the project node, Workbench project logo BoostConverter, in the Explorer. Go to the next page by clicking the Property class next page icon in the property dock or choosing Device configuration from the drop-down menu. Check that the Frequency within PWM Configuration is set to 100000.

  8. Ensure that the PWM channel is set to the Si power pole. To do this, open the property of the tool labeled Si PWM in the model by double clicking on it. Check that the Channel is set to 2.

    In buck converter Channel was set to 1, to use the top switch of a two-switch power-pole. In boost converter Channel is set to 2, to use the bottom switch of a two-switch power-pole.

Preparing the setup
    warningWarning

    Before proceeding, ensure that the isolated power supply is powered down and that the USB cable is disconnected.

  1. Magnetics card connection: Replace the existing magnetics card with the Buck/Boost/Buck-boost magnetics card, making sure that all six pins are properly aligned and in contact with the power-pole board, adjusting the angle if necessary.

    warningWarning

    Never leave the magnetics card unscrewed. If contact is lost while the converter is running, it has the potential to cause very high voltage due to interruption of inductor current, potentially damaging the converter, or worse, could lead to a safety hazard.

  2. Rheostat setting: Set the slider such that the resistance across the two closest rheostat terminals is 40 Ω.

  3. Power connections:

    Boost converter connections are the same as that of the buck converter where the input and output terminals are swapped.

    1. Connect the I+/I- terminals to the rheostat load:

      1. Rheostat rail: I+ (Red)

      2. Rheostat terminal closest to the rail:  I− (Black)

    2. Connect the O+/O- terminals to the isolated power supply:

      1. DC +ve: O+ (Red)

      2. DC −ve:  O− (Black)

    3. Connect the power supply ground to the ground terminal on the board:

      Ground: GND (Green)

  4. DSO connections:

    1. Connect DSO channel 1 probe to Ii. Set the following options, if they are supported by the DSO:

      1. Set the probe to 1x.

      2. Set the measurement type as Current.

      3. Set the scaling factor to 4x.

      4. Set the offset at 1.5 V or 6 A.

      5. Set termination to 1 MHz.

      6. Set the channel as inverted.

    2. Connect DSO channel 2 probe to Io. Use the same settings as Channel 1.

    3. Connect DSO channel 3 probe to Vi using the 20:1 attenuator. Set the following options, if they are supported by the DSO:

      1. Set the probe to 1x.

      2. Set the measurement type as Voltage.

      3. Set the scaling factor to 20x.

      4. Set the offset at 0 V.

      5. Set termination to 1 MHz.

      6. Set the channel as default/non-inverted.

    4. Connect DSO channel 4 probe to Sa using the 20:1 attenuator. Use the same settings as Channel 3.

    please noteNote

    Since the input and output power terminals are swapped, Channel 2 which is connected to Io, actually measures the input/inductor current.Channel 1 which is connected to Iin, actually measures the diode current and Channel 3 which is connected to Vin, actually measures the output voltage.

  5. Jumper settings:

    1. Insert jumpers ❶ and ❺ () to bypass the external current measurement.

    2. Insert the GaN/Si jumper ❷ () to Sa/Sw. This connects the buck-converter inductor to the midpoint of the Si power pole.

    3. Jumper ❸ () for the GaN FET’s external diode may remain inserted or removed, since this experiment does not use the GaN power pole.

    4. Insert jumper ❹ () to connect the drains of the top switches to the positive DC bus (Vin+).

    5. Remove jumper ❻ () to disconnect the capacitors across the switches.

  6. Connect the USB cable to the power-pole board and the computer.

  7. DC power supply settings:

    1. Make sure that the DC power supply is fully turned down to 0 V prior to turning on the supply.

    2. Turn on the power supply and gradually ramp up the voltage from 0 V to 15 V.

    3. If the option is available, set the power supply current limit at 4.5 A.

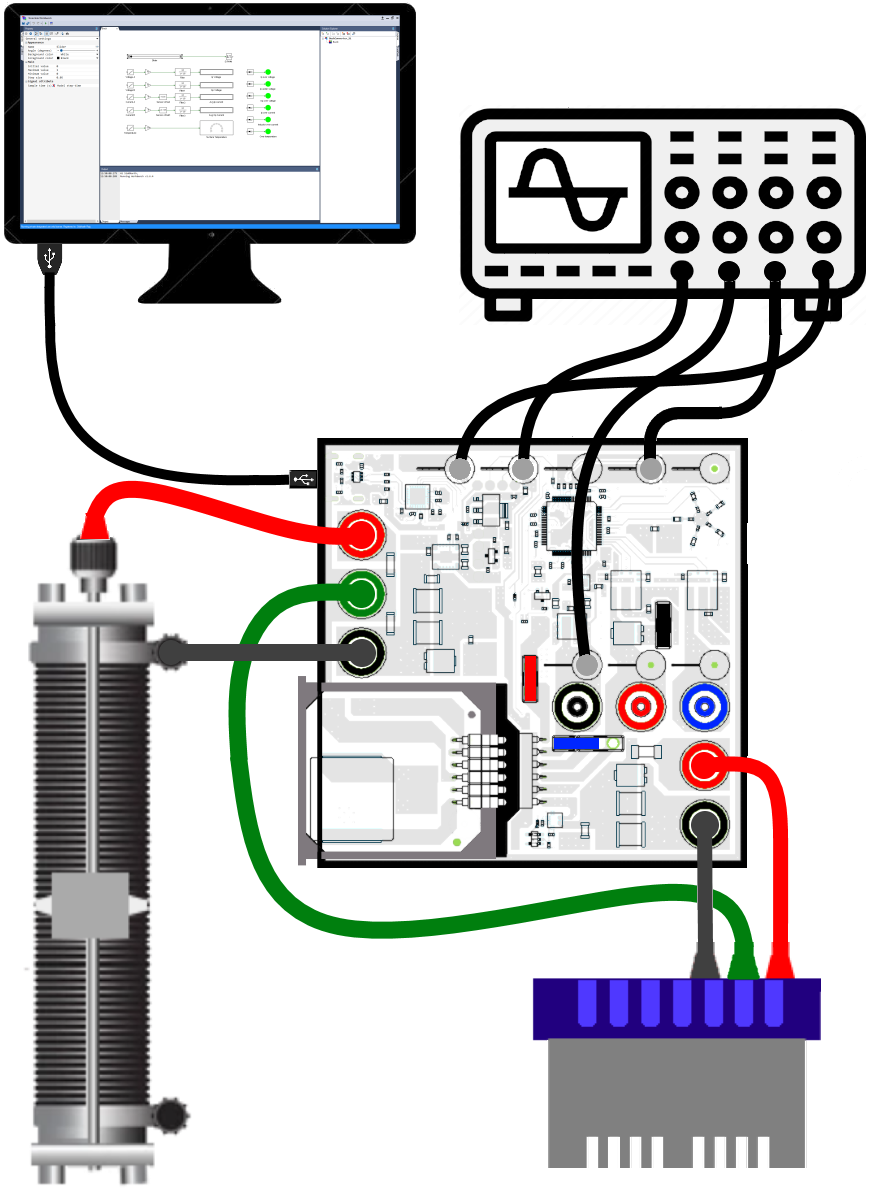

The final wiring should look similar to this:

Boost converter wiring diagram

Real-time open loop control of boost converter - varying duty cycle
Running the setup:
  1. Click on the Numerical simulation to Real-time mode transition button icon in the top dock of Workbench to transition from the simulation mode to the real-time mode.

  2. Click Numerical simulation and real-time prototyping Run button to run the control algorithm in real-time.

  3. Gradually increment the duty cycle from 0 to 0.5 in steps of 0.05. If a fault occurs, stop the model by clicking on Numerical simulation and real-time prototyping Stop button button.

  4. Make the following measurements:

    1. Make a note of the voltage and current values displayed on Workbench, for each duty cycle step.

    2. Observe the DSO waveforms and make a copy of the voltage across the switch (channel 4), the output voltage (channel 3), the inductor/input current (channel 2), and the diode current (channel 1) for duty cycle of 0.1, 0.2, 0.3, and 0.4. Adjust the time base to show anywhere between 4-10 switching cycles.

  5. Click on Numerical simulation and real-time prototyping Stop button to stop the model.

Real-time open loop control of boost converter - varying switching frequency
Running the setup:
  1. Set the switching frequency to 100 kHz. To do this, double click on the project node, Workbench project logo BoostConverter, in the Explorer. Go to the next page by clicking the Property class next page icon in the property dock or choosing Device configuration from the drop-down menu. Change that the Frequency within PWM Configuration to 100000.

  2. Click Numerical simulation and real-time prototyping Run button to run the control algorithm in real-time.

  3. If an under-voltage fault occurs, slightly increase the input voltage above 15 V but less than 16 V. Stop the model by clicking on Numerical simulation and real-time prototyping Stop button and rerun it.

  4. Gradually increment the duty cycle from 0 to 0.3. If a fault occurs, stop the model by clicking on Numerical simulation and real-time prototyping Stop button button and re-run the model.

  5. Make the following measurements:

    1. Make a note of the voltage and current values displayed on Workbench, at 0.3 duty cycle.

    2. Observe the DSO waveforms and make a copy of the voltage across the switch (channel 4), the output voltage (channel 3), the inductor/input current (channel 2), and the diode current (channel 1) at 0.3 duty cycle. Adjust the time base to show anywhere between 4-10 switching cycles.

      Measure the peak-peak inductor ripple current. This will be used to compute the inductance value.

  6. Click on Numerical simulation and real-time prototyping Stop button to stop the model.

  7. Repeat this section for PWM frequency of 80 kHz, 60 kHz, and 40 kHz. For these frequencies, it is sufficient to take measurement at just a single duty cycle of 0.3.

  8. Turn OFF the power supply and disconnect the USB cable.

If required, repeat the same experiment using GaN power-pole instead of Si power-pole as demonstrated in Switching characteristic of Si MOSFET/GaN FET and diode.

Lab report and reading assignment
  1. Attach the DSO waveforms showing the voltage across the diode, the output voltage, the inductor current, and the input current for switching frequency of 100 kHz and duty cycles of 0.1, 0.2, 0.3, and 0.4.

  2. Attach the DSO waveforms showing the voltage across the diode, the output voltage, the inductor current, and the input current for duty cycle of 0.3 and switching frequency of 40 kHz, 60 kHz, 80 kHz, and 100 kHz.

  3. For switching frequency of 100 kHz and duty cycle varying from 0.1 to 0.5 in steps of 0.05, enter the measured values from the Workbench screen capture and calculate the following values:

    dset Vin (V) Iin,avg (A) Pin (W) Vo (V) Io,avg (A) Pout (W) dact Efficiency (%)










    where, dset is the duty cycle value set using Workbench and dact is the duty cycle (d) calculated using Eqn. 1.

    Plot the efficiency as a function of dutyact.

    Plot the Vo as a function of dutyset.

  4. For duty cycle of 0.3 and switching frequency of 40 kHz, 60 kHz, 80 kHz, and 100 kHz, enter the recorded values from Workbench and calculate the following values:

    fsw (kHz) Vin (V) Iin,avg (A) Pin (W) Vo (V) Io,avg (A) Pout (W) Efficiency (%)









    Plot the efficiency as a function of fsw. Comment on the difference in efficiency with respect to switching frequency.

  5. From the plot of inductor current at 100 kHz switching frequency, duty cycle of 0.3, and load resistance of 40 Ω, estimate the boost converter inductor value using Eqn. 6.

Reference
  1. "Power Electronics, A First Course," Ned Mohan and Siddharth Raju, Wiley Publication.
